DTG-18 Series Quick Overview
Revolutionary four-eye panoramic night vision goggles with 120° field of view
- 120° Panoramic FOV - Unprecedented wide viewing angle
- Four-Eye Design - Four image tubes for enhanced depth perception
- Gen 2+/Gen 3 Options - Choose your performance level
- Auto Brightness Control - Optimal viewing in changing light
- Built-in IR Illuminator - Complete darkness operation
- IP65/IP67 Waterproof - Rugged and reliable in all conditions
Perfect for military, law enforcement, security, and outdoor enthusiasts requiring superior night vision capabilities.

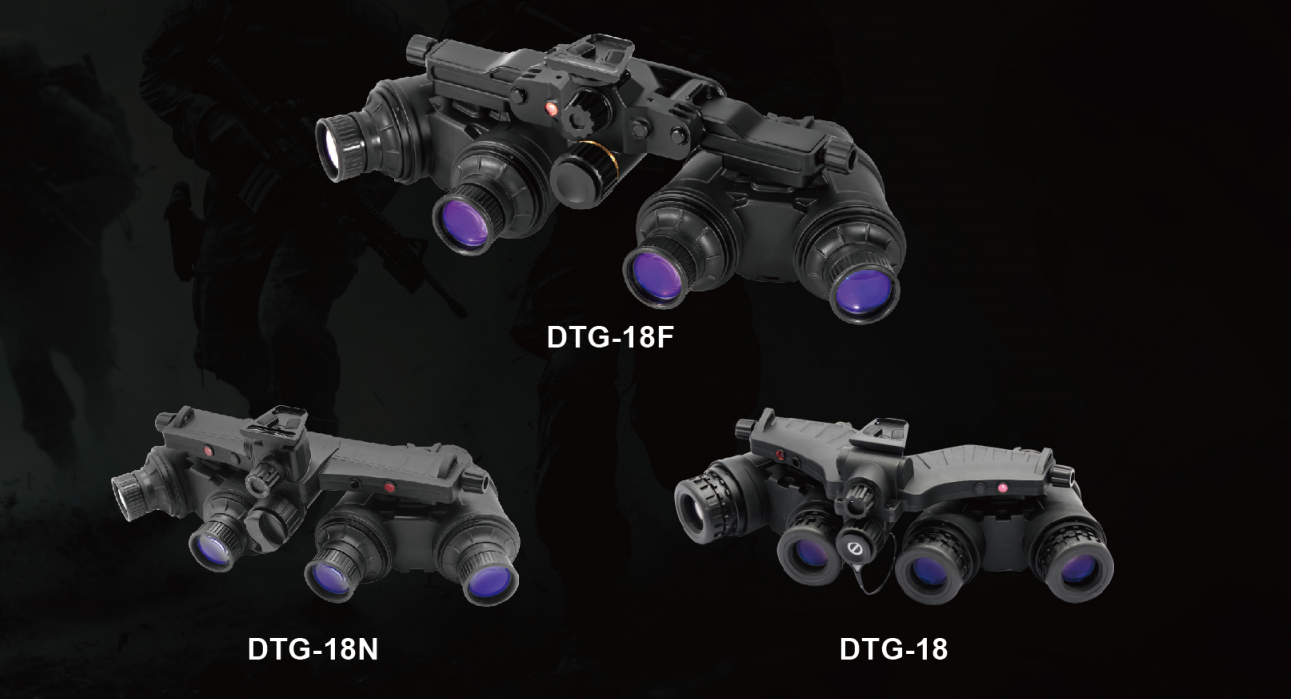

DTG-18 Series Product Variants

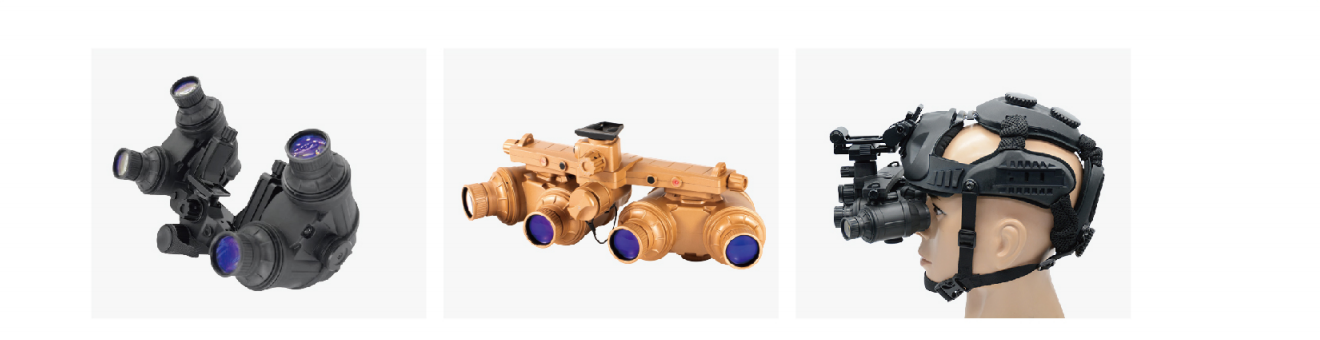

Product Images
Product Description
Ground Panoramic Observation
DTG-18N is a four-eye night vision device innovatively developed by Delyl Optoelectronics with ground panoramic observation capabilities. The purpose is to provide users with more information in a dark environment and to pass the OODA loop (observation, orientation, decision, action) faster.
Four-Eye Design
The most feature of the DTG-18N is that it has four image tubes and four objective lenses arranged in a panoramic direction. The two middle lenses point forward like traditional dual night vision, giving the user more depth perception, while the other two point slightly outward from the center to increase peripheral vision.
Image Stitching Technology
The two tubes on the right and the two tubes on the left perform image stitching and fusion at the eyepiece. Users see the two central images overlapped with the two outer images, resulting in an unprecedented 120° field of view.

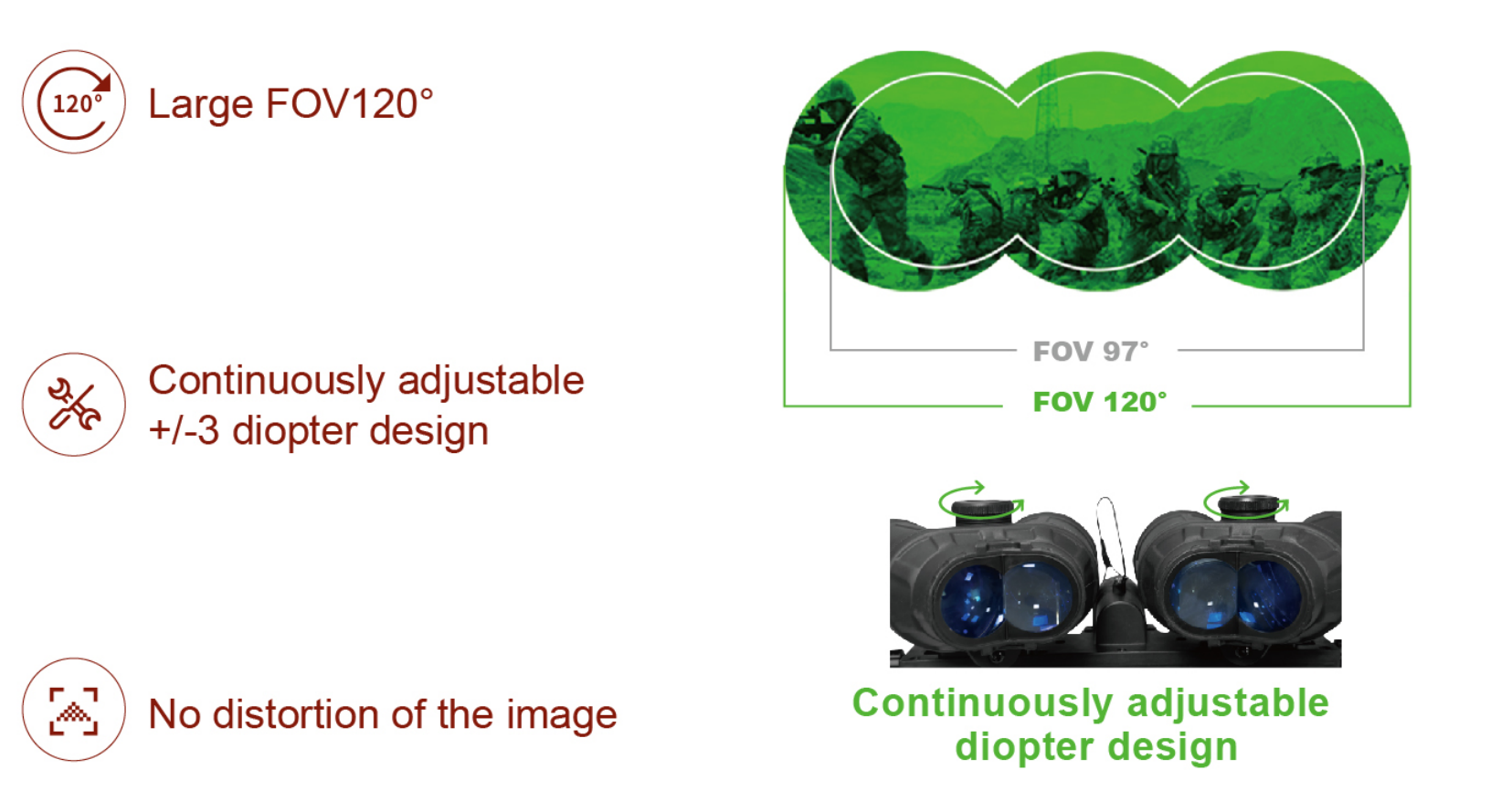

Large 120° Field of View
Experience an unprecedented wide field of view that dramatically improves situational awareness in low-light conditions.
No Image Distortion
Advanced optical design ensures minimal distortion for accurate perception of your surroundings.
Adjustable Diopter
Continuously adjustable +/-3 diopter design accommodates users with different vision requirements.
Technical Specifications
| Specification | DTG-18 | DTG-18N | DTG-18F |
|---|---|---|---|
| Generation | Gen 2+/Gen3 (optional) | Gen 2+/Gen3 (optional) | Gen 2+/Gen3 (optional) |
| Magnification | 1X | 1X | 1X |
| FOV | 120~50 +/-2° | 120~50 +/-2° | 120~50 +/-2° |
| Diopter | +2.5~3.5 | +2.5~3.5 | +2.5~3.5 |
| Capability | Flip-Up On-Off | Flip-Up On-Off | Side-up On-Off |
| Auto Brightness Control | YES | YES | YES |
| Bright Light Cut-off | YES | YES | YES |
| Infrared Illuminator | Built-in (850nm 20mW) | Built-in (850nm 20mW) | Built-in (850nm 20mW) |
| IR Indicator | YES | YES | YES |
| Low Battery Indicator | YES | YES | YES |
