Text Messages Sender- Pseudo Base Station
- Product system introduction The system adopts reliable information protection technology and high-performance electronic components an……
Product Details
- Product system introduction
The system adopts reliable information protection technology and high-performance electronic components and is carefully designed and developed after repeated experiments and tests. Its principle is a comprehensive system based on wireless communication network technology, combined with software radio technology to collect and send information to target terminal objects.
A sector-shaped space is customized according to the power of the system. The normal wireless connection between the terminal mobile phone and the base station makes the mobile phone invalid for a short period of time in this space, and cannot receive or call out, so the terminal mobile phone can be sent to the mobile phone after receiving the information. Connected to the base station normally, the device has a series of characteristics such as beautiful appearance, convenient use, wide applicability, good heat dissipation performance, high stability, and good electromagnetic compatibility, and supports operators all over the country.
2. Product form introduction

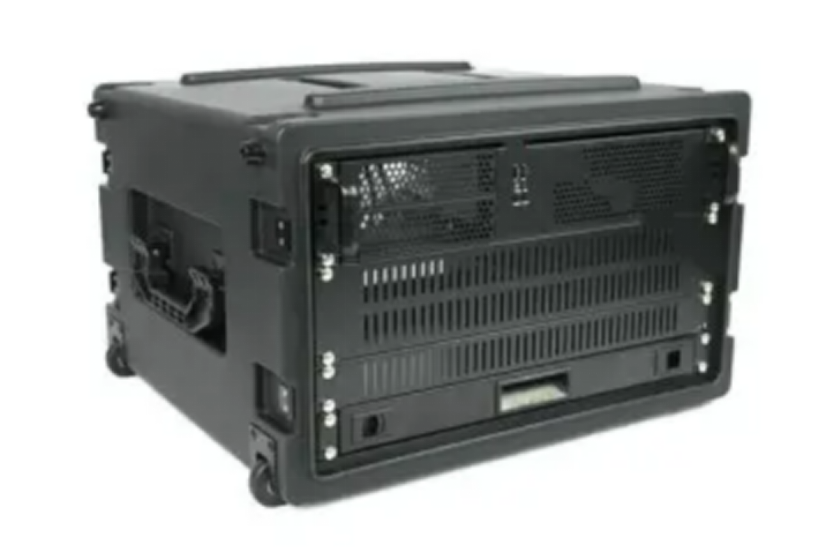

Built-in standard 2U device size 482*420*88.8mm

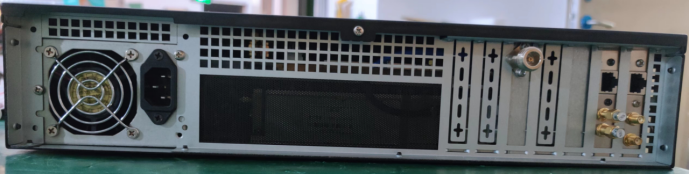

Front panel power switch, rear panel with battery connector, main antenna connector (N type), GSM frequency sweep antenna connector (SMA-K), LTE frequency sweep antenna connector (SMA-K), network port connector (RJ45)
- Product Features
| serial number | function name | Function Description |
| 1 | Support GSM850/900/1800/1900 quad-band | Standard global GSM communication frequency band |
| 2 | Support 4G-LTE FDD/TDD BAND1, 2, 3, 4, 5, 7, 8, 12, 20, 28, 38, 40, 41 frequency bands | Covers most frequency bands around the world |
| 3 | The maximum power can be adjusted to 50W | RF uses high-power and high-efficiency power amplifier |
| 4 | Automatically scan for local carriers and configure devices automatically | Works automatically according to the local operator |
| 5 | Low noise work, fan stop alarm | The fan can automatically adjust the air volume according to the ambient temperature |
| 6 | Support computer and tablet control | |
| 7 | Supports up to four operators to work at the same time | Support different operators to send different information |
| 8 | Support Uincode encoding | |
| 9 | Flash SMS support | |
| 10 | Maximum support 1000 characters to send |

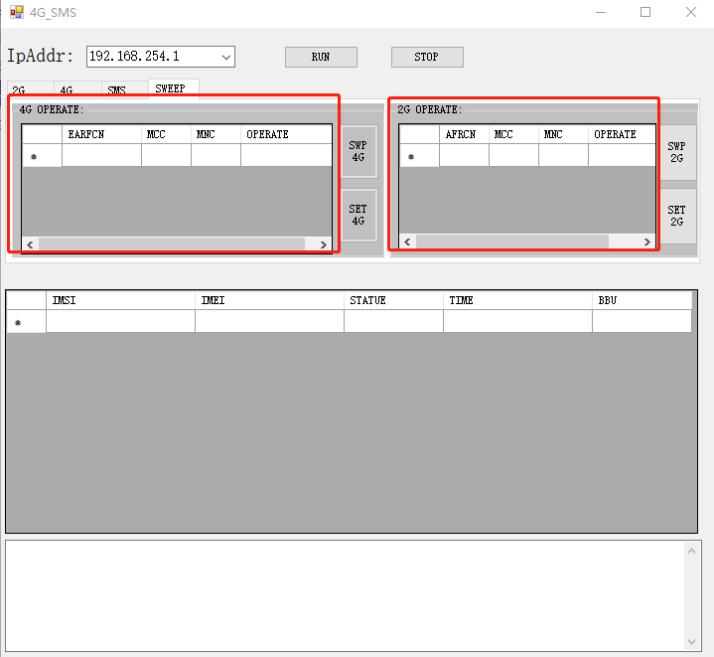

- Software operation
